Understand How Injection Molding Machine Uses Magnetic Clamping System

injection molding machine

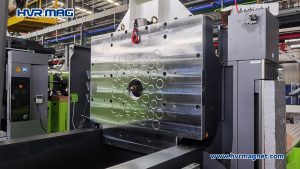

Magnetic clamping system is essential in the injection molding industry, offering numerous benefits despite certain operational challenges. If your company has not yet adopted a magnetic clamping system, it is worthwhile to invest time and effort into understanding how their incorporation could greatly benefit your injection molding operations.magnetic platen

Significance of Clamping Unit in Injection Molding

The primary function of the clamping unit is to securely hold the mold in place during the injection molding process. It applies sufficient force to keep the mold closed and resist the high pressure of the molten material injected into the mold cavity. It ensures that the mold remains closed with precise alignment and maintains consistent dimensions throughout the production cycle. This is crucial for achieving accurate and uniform parts, minimizing dimensional variations, and maintaining product quality.

How Magnetic Clamping System Works

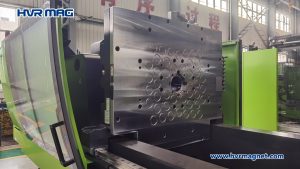

The magnetic clamping system consists of two sets of electro permanent magnetic platen. One set of platen is fixed in the base, while the other set is movable. This magnet is called “electro permanent” because it requires electrical power only during the magnetization and demagnetization processes. To activate the clamping system, a short burst of electric current is applied to the magnet. The current can then be turned off without affecting the clamping force, as the magnetic state of the electro permanent magnets holds the mold securely in place.magnetic platen

Features of Magnetic Clamping System

Rather than using mechanical force to hold the mold closed, magnetic clamping systems utilize powerful magnets to secure the mold halves together. It offers several advantages over traditional mechanical clamping methods, such as faster mold changeovers, reduced setup time, and improved part quality due to consistent clamping forces.

Quick Mold Change: Magnetic clamping systems enable faster mold changeovers compared to mechanical systems. The absence of manual clamping mechanisms, such as bolts or toggles, reduces setup time and increases productivity.

Uniform Clamping Force: The magnetic clamping system exerts a uniform, evenly distributed clamping force across the entire mold surface. This helps ensure consistent part dimensions, eliminates mold deformation, and improves overall product quality.

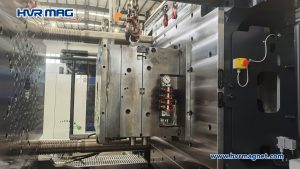

Energy Efficiency: Magnetic clamping systems consume energy only during the clamping and demagnetizing processes. Since there is no need for continuous power during molding, energy consumption can be reduced.magnetic clamping system

Customized Solutions

Just like any other industry, the field of injection molding demands tailored solutions for its magnetic mold clamping purposes. Each site has its own specific requirements, limitations, and budget objectives that must be taken into account. To ensure optimal outcomes, it is advisable to seek advice from a skilled magnet supplier who can provide a solution that perfectly aligns with your particular needs.

HVR MAG offers magnetic clamping solutions based on the needs of your unique application. For more information and customization, please contact us at export@hvrmagnet.com
